Pneumatic Rubber Fenders Ready for Shipment

Oct. 27, 2026 | 14:19:28

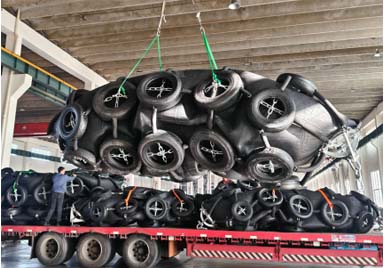

A full load of high-performance pneumatic rubber fenders (Yokohama-type fenders) has been completed and loaded onto flatbed trailers at our manufacturing facility, ready for delivery to overseas clients. These inflatable marine fenders serve as a critical safety buffer to prevent hull damage during vessel berthing, unberthing and offshore ship-to-ship (STS) transfer operations.

Pneumatic rubber fenders are constructed from multi-layer reinforced synthetic cord rubber, inflated with compressed air to create a floating, flexible shock-absorbing cushion. Unlike solid rubber fenders, they absorb berthing impact energy through air compression, achieving high energy absorption while maintaining low surface pressure on vessel hulls. This core advantage greatly reduces the risk of paint scratching, hull denting and structural stress for oil tankers, bulk carriers, container ships and offshore platforms.

Core Technical Specification of Pneumatic Rubber Fenders

Item	Specification
Standard	ISO 17357-1:2014
Structure	Outer rubber layer + Synthetic cord reinforcement layers + Inner rubber lining
Working Initial Pressure	50 kPa (P50) / 80 kPa (P80)
Standard Deflection	60%
Fender Type	Chain & tyre net type (as shown in picture), Sling type
Surface Protection	Second-hand tyre protection net / Chain net
Fitting	Hot-dip galvanized chain, shackles, end flange
Material	Marine grade rubber, high tensile synthetic cord
Available Certificates	BV, ABS, DNV, CCS, LR third-party inspection certificate
Application	STS transfer, vessel berthing, shipyard, temporary berth, offshore platform
Feature	Floating automatically with tide, low hull pressure, high energy absorption
Test Items	Air tightness test, pressure holding test, impact compression test

The batch rubber fender is equipped with heavy-duty galvanized chain and tyre protection nets. The tyre net wrapping protects the rubber body against abrasion from floating debris, sharp contacts and repeated friction; the chain assembly allows convenient hoisting, positioning and rapid deployment at ports or offshore sites. As floating equipment, pneumatic fenders rise and fall automatically with tidal changes, delivering stable protection in locations with large tidal ranges, temporary berths and open-sea transshipment scenarios where fixed quay fenders cannot work properly.

Standard Size & Performance Data (At 60% Deflection)

Nominal Size (D × L, mm)	Initial Pressure	Guaranteed Energy Absorption (kJ)	Reaction Force (kN)	Hull Surface Pressure (kPa)
500 × 1000	50 kPa	6	64	132
600 × 1000	50 kPa	8	74	126
800 × 1500	50 kPa	20	145	130
1000 × 2000	50 kPa	45	257	132
1200 × 2000	50 kPa	64	325	132
1500 × 3000	50 kPa	153	579	132
1700 × 3000	50 kPa	205	710	132
2000 × 3500	50 kPa	320	930	132

Note: P80 version has higher energy absorption and reaction force. Custom dimensions are available upon request.

Lightweight for handling, easy to inflate, deflate and relocate, this type of fender is a versatile, cost-effective marine protection solution. Our team provides full technical support including size selection, pressure guidance, inspection certification and customised configurations for different vessel tonnages and working conditions.

“We keep focusing on consistent quality and reliable lead time to help our global partners minimise berthing risks and secure marine operations,” said our project manager. “Every shipment reflects our commitment to durable, certified marine protection equipment.”
